Floor System



Generated Floor System Drawing

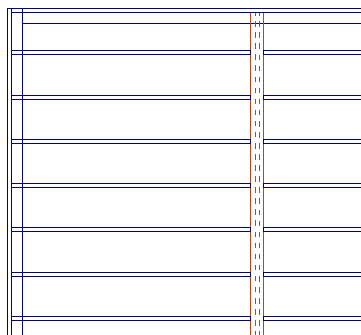

Floor System with Flush Beam

Flush Beams are automatically added to generated Floor Systems drawings.

Slab Footings

Slab Footings are automatically added when Slab Edges are added via Add Polygon Edges.

Sloped Slabs

Sloped Garage Slab

Slabs can be sloped. Select reference side and indicate downward slope.

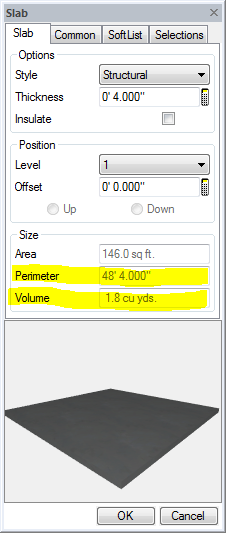

Perimeter and Volume status fields added to Edit dialog

Volume added to Slab Label

Slab Label
