Notes




Information Stamps

@day Information Stamp added - Automatically inserts the current date of the month into a Note.

@month Information Stamp added - Automatically inserts the current month into a Note.

@plan_set_page_number Information Stamp added - Automatically inserts the current Plan Set page number into a Note.

@plan_set_page_title Information Stamp added - Automatically inserts the current Plan Set page title into a Note.

@property_area Information Stamp added - Automatically inserts the area of the Site into a Note.

@year Information Stamp added - Automatically inserts the current year into a Note.

Color

No Print notes automatically changes color to match the default color of other non-print items.

Date

@date Information Stamp automatically retrieves its setting from the operating system.

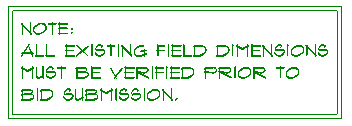

Double Box Outline style added

Double Box Ouline

Notes draw to the screen faster.

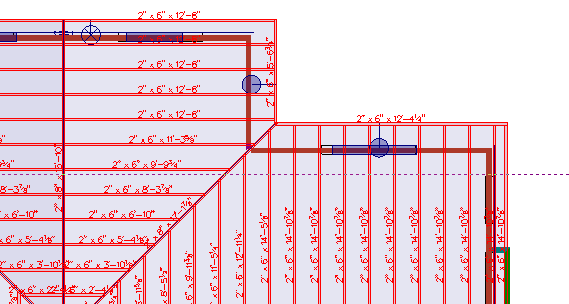

Framing Labels

Roof, Floor, Ceiling Framing Labels

Framing Labels can be automatically added directly to Roof, Floor, and Ceiling Framing Layouts.  In older version an ID and Schedule would have to be used.  Now it can be done either way.

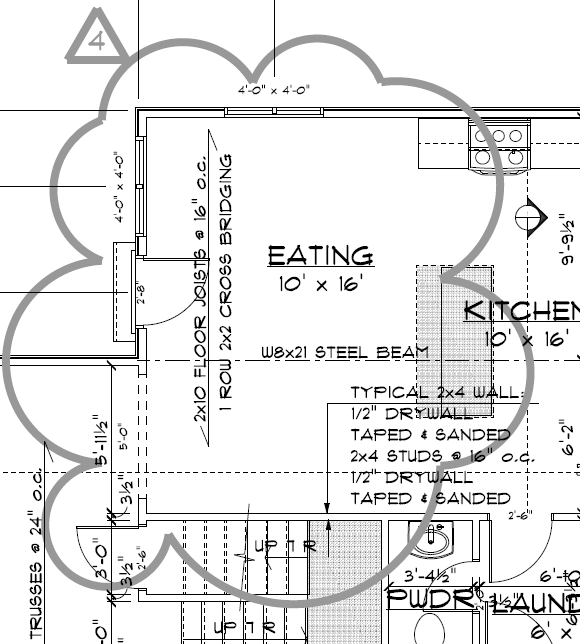

Revision Cloud

Revision Cloud

Revision Cloud command added to notes. The cloud graphic is added to the drawing, automatically numbers and added to the new Revision Schedule.

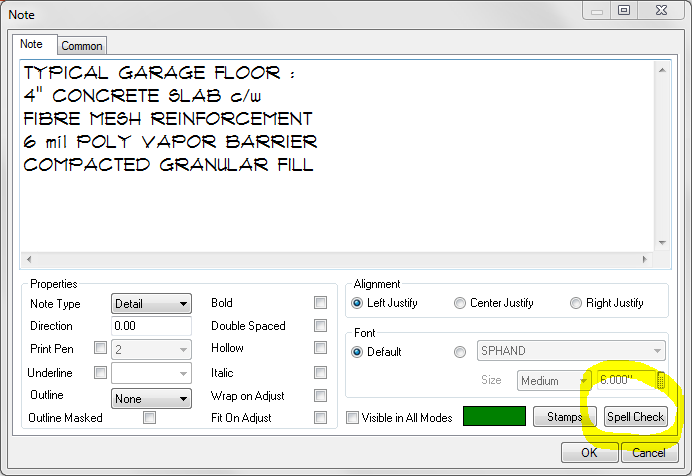

Spell Check

Spell CHeck

Note dialog has direct access to Spell Check command.

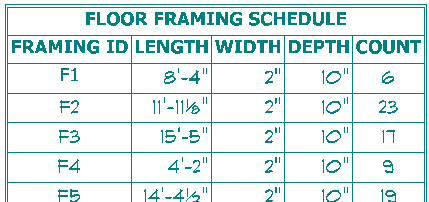

Title row added to Table and Schedules

Table Title

Unicode Characters

Support for Unicode characters added. This is used to access special characters in non-SoftPlan fonts by typing ALT + x.
