Openings

Auto Determine Opening Swing Side option added.

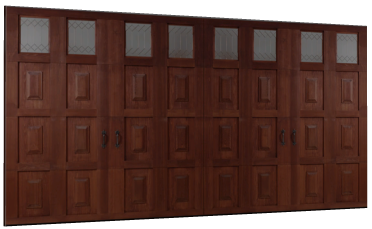

Amarrr garage doors added to manufacturers' library.

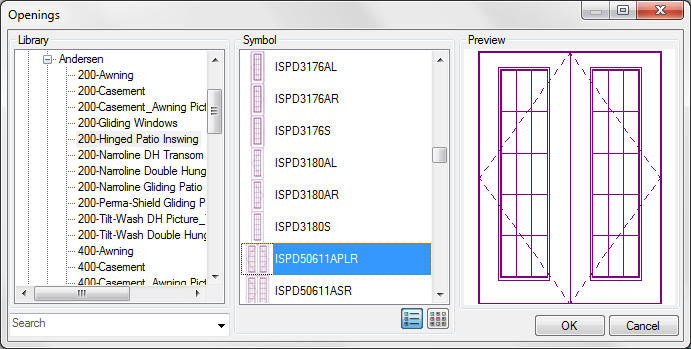

200 series hinged patio in swing doors added to Andersen manufacturers' library.

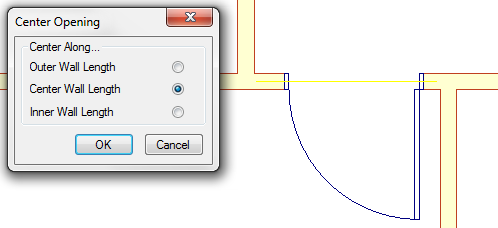

Center Wall Length option added to the Center command.  Places the Opening between two wall that intersect a common wall from opposite sides.

If an Opening is already centered the "center" check box on the Edit Dialog will display as checked when the dialog is opened.

Custom Text option added to the display tab.  Allows the opening size to be expressed exactly how the user wishes.

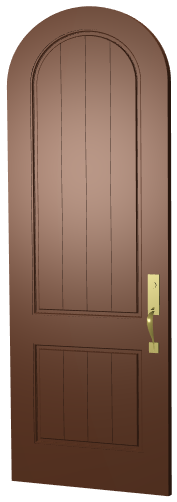

8' Round Top Door library added containing 25 new openings.

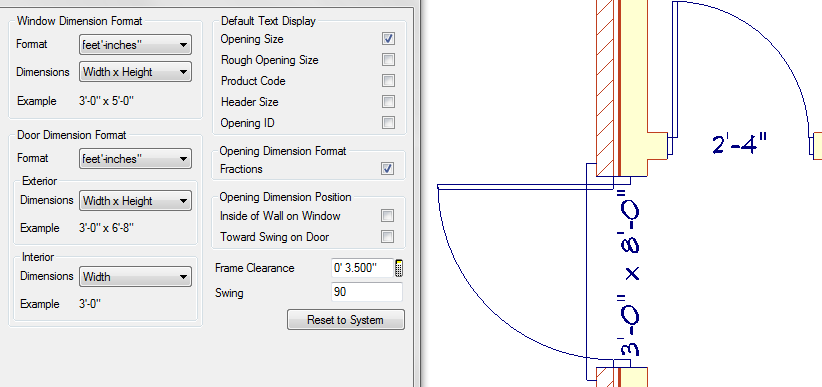

Door and Window Dimension Format

Several formats added to the way a door size appears on a floorplan.

Interior and Exterior Door have separate Door Dimension format listings allowing Interior doors to list as a Width only while Exterior Doors as Width x Height.

Double Action Swing option added to Doors.

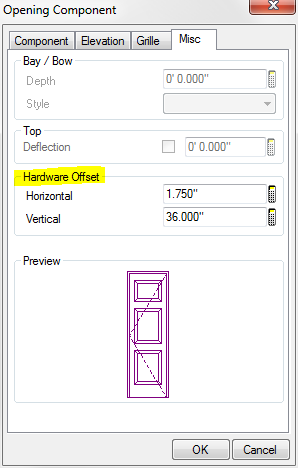

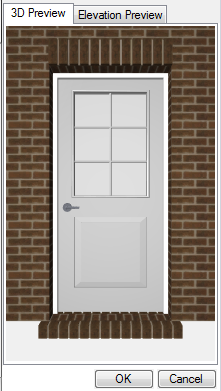

Option added to move the handles on a door so they sit better on the style of the door.

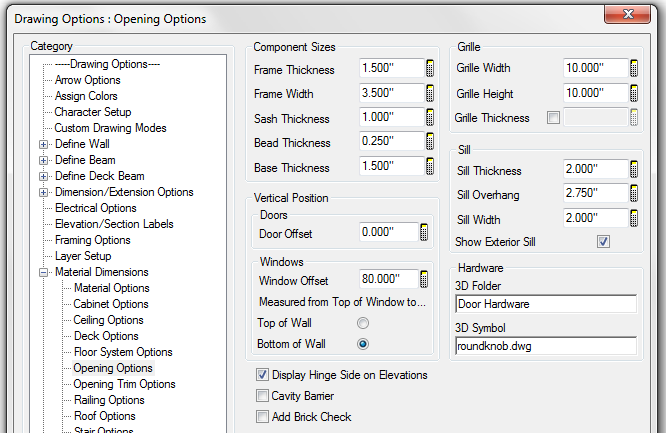

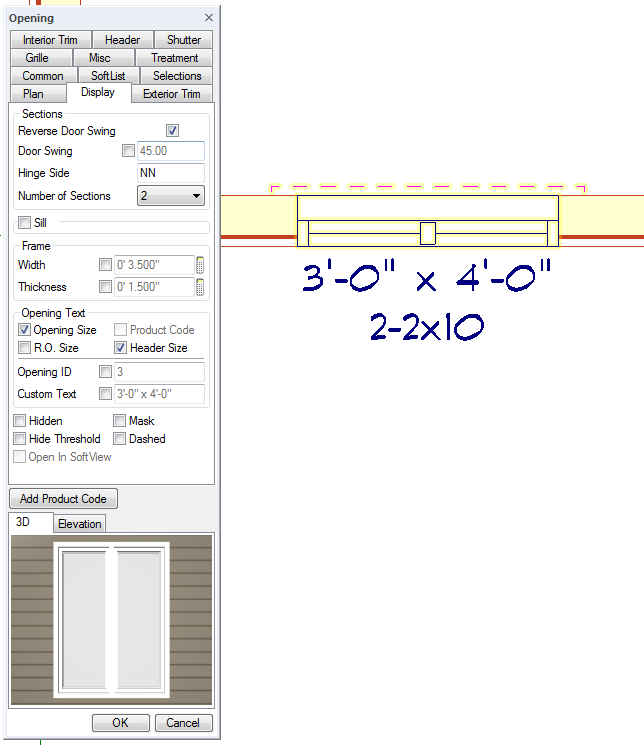

Display option added to allow the opening header size to appear on the plan in drawing mode.

Number of Plys added to Header Span Table.  All openings that use the table update with a change to the table.

Mask option added to Edit removes all items "under" the Opening Label on the screen making the size easier to read.

Option added to configure Opening ID Labels to be Numbers or Letters for windows and doors.

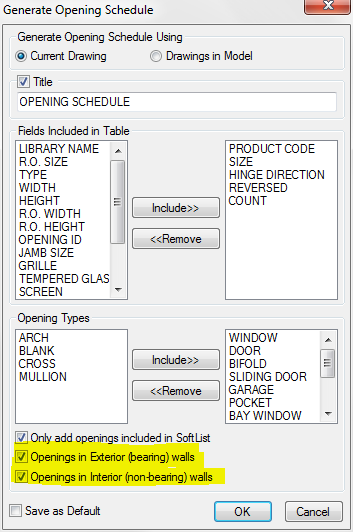

Interior and Exterior Openings has separate inclusion on the Opening Schedule.

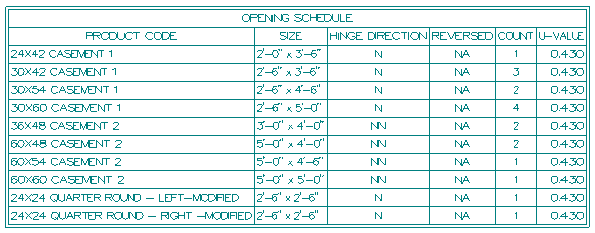

u-values added.

2 Panel and 3 Panel Door libraries added to the Interior Doors.  20 doors total.

96" tall openings added to libraries.

Aluminum Sill and Threshold type added.

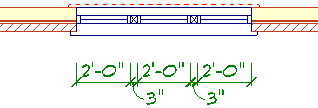

Individual Windows and Doors can be mulled together horizontally or vertically with thickened "mullions" or "transom bars".

When an Opening is resized to fit a space when drawn the size is automatically rounded to the nearest inch or 10mm increment.

Horizontal and Vertical Blinds added to Opening Treatment library and can be automatically added and fit to the openings.

Default setting added. When selected the Opening will always look to the Drawing Options for the trim values. This makes it simple to change the trim all the openings in one spot.

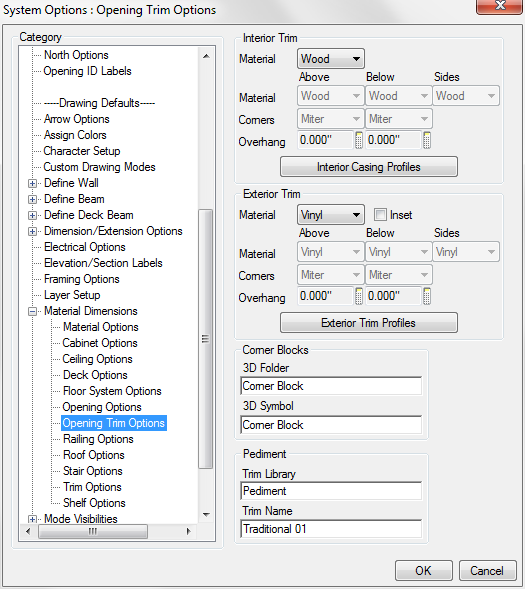

Profiles added the Opening Trim Systems and Drawing options

Unit Opening command added to the Edit menu.  A quick way to join separate but adjacent openings together into a single unit.

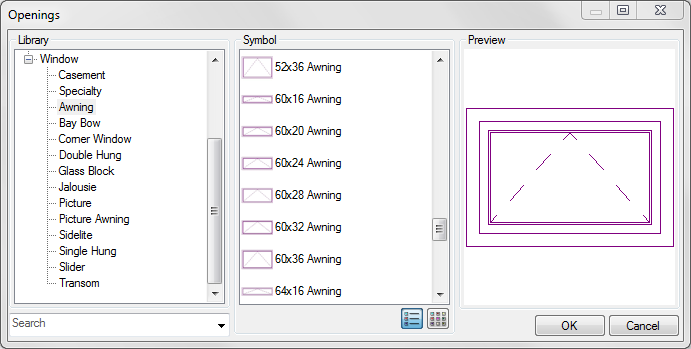

Awing Window library added.
